Carton sealing and strapping packaging line
Share This Product:
  • Description

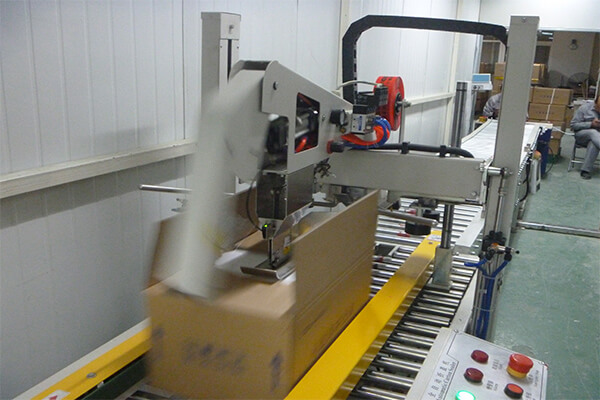

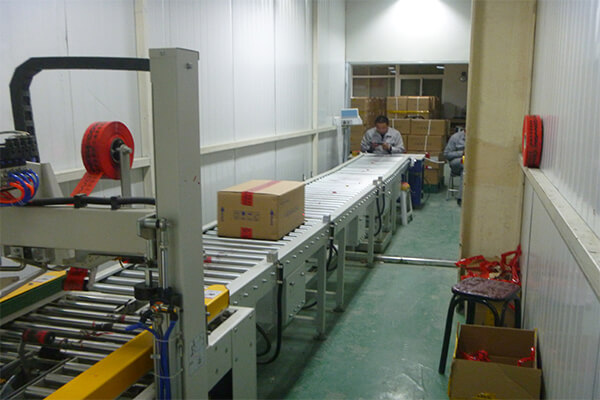

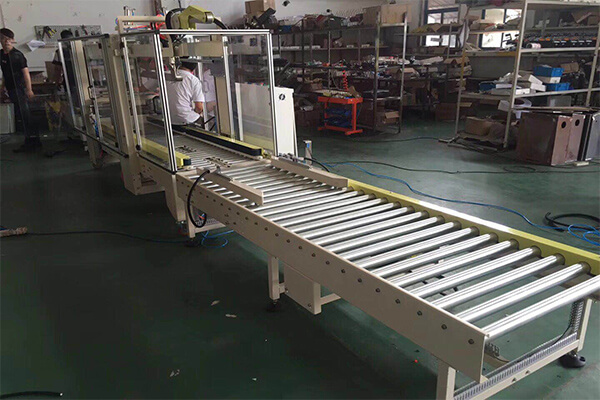

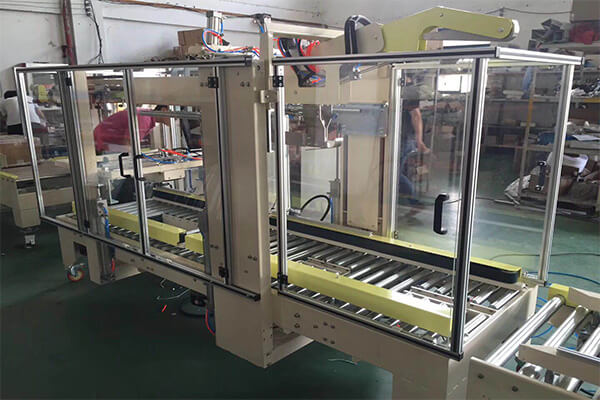

This system consists of automatic carton bottom flap, automatic carton sealer, automatic strapping macine and conveying frame,which has the function of continuous automatic carton sealing and multi-belt strapping, and it not only takes up less room but also reduces the packing cost as well. It is automatic control and reliable working, convenient operation and simple maintenance while, the carton sealer and strapping machine can be used separately.

Voltage   (V/Hz)

AC   220/50 110/60

Gross   Power (W)

1700

Max.   Carton Size (L×W×H) (mm)

600×500×500

Min.   Carton Size (L×W×H) (mm)

180×260×130

Speed   (m/min)

16

Productive   Capacity (pcs/h)

600

Height   of Table (mm)

830

Adhesive   Tape (mm)

BOPP,PVC   Adhesive tape,width 60,76mm

Available   Strapping Belt (mm)

plastic   strapping belt,width9~15    thickness0.5~1.1

Air   Compressor (optional)

2/3   litres at 5 bars

External   Dimensions (L×W×H) (mm)

6650×1420×   1565

Net   Weight (kg)

500
